Checkmate Pulsare 2100 Bow Rider

Mercury Promax 300X


Boat hull before deck
Boat hull before deck


Moose Landing Marina
U.S. Route 302
Naples, ME 04055
(207) 693-6264



Checkmate Pulsare 2100 BR
Custom Boat bulid


January 2005


Specifications

Overall length w/swim platform: 21 feet
Beam: 95 inches
Degree of Deadrise: 19 degrees
Max HP: 300 HP
Approximate Weight: 1,375 lbs.
Approximate Fuel Capacity: 40 Gal


Standard Equipment

Three color hull & deck gunnel graphics in gel
Cooler under rear seat
Dual cable non-feedback steering with custom steering wheel
Custom foamed in-floor gas tank with dash gauge
Custom bucket seats with fore and aft adjusters
Speedometer
Electric marine horn with button
Bilge pump
Custom boarding ladder
Hand lay up with end grain balsa core hull
Custom tinted safety glass windscreen with removable center section
Colored keyed interiors
Drink holders
Deep pile marine carpet
Custom wiring harness
Fused dash panel
In-floor storage locker with polymer lid
Deck bow rails
Deck hardware
Stainless steel bow and stern eyes
Hull drain plug
Bow and stern lights
Heavy duty battery holder
High grade aluminum gunwale trim with vinyl insert
Manual transom jack with 5” remote
Dash grab handle
AM/FM stereo with cassette and 2 speakers
Tachometer


Optional Equipment Ordered

Teleflex hydraulic steering
Hydraulic transom jack with 5” remote and dash indicator
Custom cockpit/tonneau cover combo colored Acrylon
Non skid vinyl flooring with snap in carpet
Removable aft deck mount ski tow
Stainless steel docking lights
Deluxe Sony CD/FM/AM with remote control
Two extra 80W speakers
Water pressure gauge
Trim gauge
Water temperature gauge
Compass
Clock
Cigarette lighter


Additional Equipment Ordered

Teleflex SeaStar Pro High Performance Steering Cylinder

Garmin 276C Color GPS Chart Recorder with Blue Chart

Garmin 276C GPS Chart Recorder






Checkmate Custom Boat bulid

The Checkmate factory and Kip Combs were great to deal with building this high performance boat! Kip kept us up to date every step of the build by email and the following pictures. The Checkmate Pulsare 2100BR, rigging, graphics, and the quality of gel coat are truly exceptional! Checkmate builds high performance quality boats that are reasonably priced.

Late into the build I requested that the new Teleflex SeaStar Pro High Performance steering cylinder featured in Bass & Walleye Boats Magazine article be installed in place of the standard and widely used Teleflex SeaStar cylinder. The new HP Pro cylinder retails for $545 and Checkmate supplied this last minute upgrade completely free of charge! The result is a steering system that exhibits no detectable free play! :-)

The following pictures of this Checkmate Pulsare 2100BR boat build
are provided by Kip Combs - thank you!


January 2005

Horse Head Mask
Horse Head Mask

Spraying the hull
Spraying the hull

Fiberglass hull with balsa core
Fiberglass hull with balsa core

Hull Stringers
Hull Stringers

Hull Transom
Hull Transom

Hull Deck
Hull Deck

Carpet
Carpet

Deck Starboard
Deck Starboard

Deck Aft
Deck Aft

Deck Bow
Deck Bow

Deck
Deck

Finished Horse Head
Finished Horse Head

Boat Hull before Top Deck
Boat Hull Without Top Deck

Mercury Pro Max 300X
Mercury Pro Max 300X

Mercury Pro Max 300X
Mercury Pro Max 300X

Gauges
Gauges

Boat and Motor before shipping
Boat and Motor before shipping



Boat arrives at Moose Landing Marina

January 25, 2005

Moose Landing Marina sales manager Kent Uicker emailed the following pictures the day the boat arrived at the Marina even though we were due to visit a few days later to inspect the new boat and take pictures.

Checkmate graphics
Checkmate graphics

Checkmate Pulsare 2100 bow rider
Checkmate Pulsare 2100 bow rider

Mercury Racing 3.0L - 300X
Mercury Racing 3.0L - 300X

Checkmate Pulsare 2100 bow rider
Checkmate Pulsare 2100 bow rider

Horse Head
Horse Head




Moose Landing Marina Naples Maine

January 28, 2005

Visit Moose Landing Marina to inspect the new boat and take pictures.

Moose Landing Marina January 2005
Winter 2005 - New 24 foot Pulsare with flames featured in the 2005 Checkmate catalog
24 foot Pulsare with red flames featured in the 2005 Checkmate catalog


Trailer starboard side
Trailer starboard side

Trailer port side
Trailer port side

Checkmate
Checkmate

Ladder
Ladder

Stern
Stern

Rear bucket seat
Stern

GPS Garmin 276C
GPS Garmin 276C

GPS and 100 MPH speedometer
GPS and 100 MPH speedometer

Instrument panel
Instrument panel

Controls
Controls

Interior bow
Interior bow

Interior bow close-up
Interior bow close-up

Bow
Bow

Port side
Port side

Starboard side
Starboard side

Stainless steel bow light
Stainless steel bow light

Port aft
Port aft

  6" Wide Pad
6

Mercury
Mercury

Mercury Promax 300X
Mercury Promax 300X

Mercury Promax 300X
Mercury Promax 300X

Lower Unit Sport Master 1.62:1
Lower Unit Sport Master 1.62:1

Mercury Promax 300X
Mercury Promax 300X

Seat Horse Head
Seat Horse Head

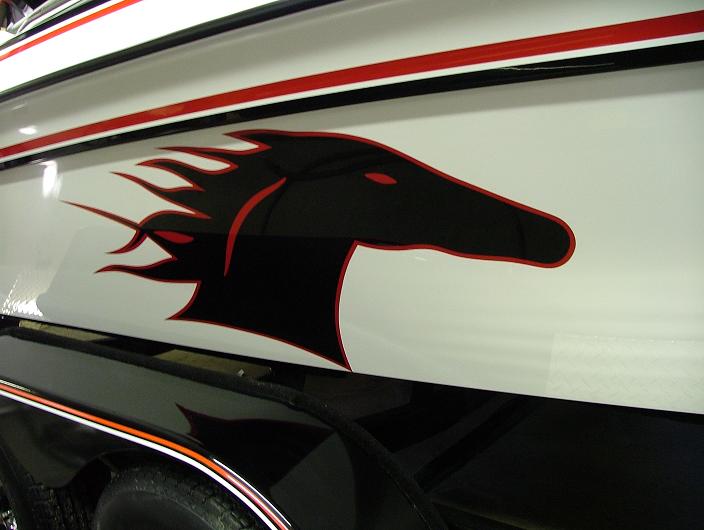

Gel Coat Horse Head
Gel Coat Horse Head





Moose Landing Marina Naples Maine

Moose Landing Marina Route 302 Napels Maine, 04055
Moose Landing Marina Route 302 Napels Maine, 04055
(207) 693-6264

The people at Moose Landing Marina in Naples Maine have truly been a joy to deal with right from the initial purchase to delivery of the boat and now with boating season. Everyone at Moose Landing Marina, from the Owner Dan Craffey, General Manger Sean Brogan, Sales Manager Kent Uicker, Sales Consultant & New Boats Set Up Richard Maguire, Chief Technician Krister Rollins, Parts & Service Richard Hodson, and all of the other people that I’m missing, everyone has been professional, courteous, thoughtful, friendly, and helpful - thank you!

If you are looking for a Checkmate performance boat and a great deal, or any of the many brands that Moose Landing Marina sells, Dan and Kent are the people to see :-) Moose Landing Marina pricing is excellent! Their deals are so good that some people many states and hundreds of miles away purchase their boat from Moose Landing Marina rather than a local dealer!

The Checkmate Pulsare 2100BR on this site is unusual with the Mercury Consumer Racing Promax 300X, horse heads, and many other options. . . The people at Moose Landing Marina as a way of saying thank you for the order provided free of charge a boat slip for the season! This boat slip provides access to some of Maine’s most beautiful lakes - thank you :-) In addition to a free boat slip on Brandy Pond, Dan and Kent also offered to put the boat in and pull it out on a as requested basis and have done so each time with a big smile :-) You guys have truly made us feel like a member of the Moose Landing Marina family, thank you!

June 11, 2005

Moose Landing Marina stocking Checkmate's :-)
Moose Landing Marina Checkmate dealer

Moose Landing Marina from Route 302 Naples Maine
Moose Landing Marina from Route 302 Naples Maine

Moose Landing Marina from Route 302 looking towards Brandy Pond
Moose Landing Marina from Route 302 Brandy Pond




Promax 300X Mercury Consumer Racing Division




2005 Mercury Promax 300X


Specifications

Propshaft Rated Horsepower (HP / kW): LOL... 300++/224++
Full Throttle RPM Range: 6100 - 6800
Cylinder/Configuration: V-6 (60 degree vee)
Displacement (CID/cc): 185 cu. In. (3032cc)
Bore & Stroke (in): 3.63 x 3.00
Bore & Stroke (mm): 92 x 76
Fuel Induction System: Electronic Fuel Injection
Ignition System: PCM 03 digital inductive
Charging System: 60-Amp (756 watt) with Voltage Regulator
Lubrication System: Electronic mulitpoint oil injection
Fuel/Oil Ratio: Electronic Multipoint
Recommended Oil: Mercury Premium Plus (TC-W3)
Fuel Requirements: 91 octane (R + M/2) or 96 RON
Rotation: Left or Right Hand (SM)(FM) Right Hand (TM)
Shaft Length (inches): 20/25
Shaft Length (mm): 508/635
Weight (lbs / kg): 480/208 with 20" center section and Torque Master gear case
Starting: Electric
Steering: Remote
Trim System: Power trim
Counter Rotation: Available
Operator Warning System: Overheat, low oil level
Warranty: One-year limited warranty for recreational boating and three-year limited corrosion warranty. One-year limited Mercury Product Protection Plan available.
SmartCraft: Yes
Gear Case: Sport Master offshore package ratio: 1.62:1 (SM)
Tempest Plus 27" Cupped Propeller

June 11, 2005
LOL. . . I Needed a training wheel!
Tempest Plus 25" Cupped Propeller

Mercury Tempest Plus 27 cupped Propeller





Driving Experience, Setup, and Videos

~ Coming soon ~

Boat at Moose Landing Marina dock
Boat at Moose Landing Marina dock



www.boats.com

Brainy Brawn

featured products

The tough and sophisticated Pro Max 300X outboard

Rated at more than 300 horsepower, Pro Max 300X is the most powerful outboard on the market. The outboard has an all-new power head, from its cylinder block to its high-flow fuel-injection system.

The block features high-performance cylinder porting and machined exhaust. These developments combined with a PCM 555 processor and a new exhaust tuner reportedly give the engine a 10-percent horsepower boost and an added 700 rpm of operating range over its predecessor, the Pro Max 300.

The injection system has a custom reed-plate assembly with rubber-coated reed blocks sporting single-stage, carbon-fiber reeds. The custom reed plate supports side-mounted fuel injections fed by an anodized aluminum fuel rail.

To operate its efficient electronic oil-injection system, the engine taps the brains of the PCM 555 processor. A system called "Engine Guardian" monitors 64 internal engine functions. Real-time data appears on the SmartCraft SC100 that comes with the outboard.

Pro Max 300X engines are with either the 20-inch center section with standard integral trim or the heavy-duty offshore swivel/transom-bracket assembly with single-ram trim. The new 1.75:1 Torque Master gear case with dual water pickups is offered with the standard package. The 1.62:1 Sport Master gear case is offered with the offshore package.




Popular Mechanics Tests The Promax 300X
on a Strocker 21 foot


100 MPH!
We take seven of the world's fastest
bass boats and go fishing.

BY RICH TAYLOR
Photos by Skip Gandy



Nail the throttle and the big Mercury 300X hooks up without a trace of cavitation. Three quick heartbeats with the bow in the air and the hull is already flat on plane. After that, there's nothing to do but hang on. The acceleration is relentless, an irresistible force that pushes you straight back into your tight bucket seat.

At 60, your hat blows off. At 70, your eyes start to tear, even though you're wearing sunglasses. At 80, the hull is out of the water and you're riding the prop, the wail of the big 2-stroke like an animal in pain. At 90, you're going faster than you've ever gone before on water, your cheeks pasted back into an insane grin.

Over 90 mph, because of the prop's pull, the hull keeps rocking to starboard. You have to constantly balance it with the wheel to minimize chine-walking that can turn to disaster quicker than a New York minute. Speed increases incrementally. Your whole world has shrunk to the GPS mounted above the tach, willing it higher ... 96.5 ... 97 ... 98 ... 98.5. 100. How fast is 100 mph on water? Let's just say you're tensed for something cataclysmic to happen. Prior to this, the fastest we'd ever gone was 88 mph in a $160,000 Scarab powered by twin NASCAR racing V8s assembled by Jeff Gordon's crew at Hendrick Motorsports.

So, just how fast is 100 mph on water? Well, MerCruiser just announced that a 30-ft. Eliminator Daytona with twin MerCruiser 496 MAG HO big-block V8s is the first boat ever to hit 100 mph powered by production sterndrives. On water, 100 mph makes you Top Gun. Compared to that narrow-focus Eliminator, a bass boat not only costs $100,000 less, it has a practical reason for speed-- the quicker you can get out to where the fish are biting and back again, the more time you'll have to fish.



Must See Fast Boat Video's :-)

Please right click Save Target As
and then play the video from your hard drive.

V-bottom boats Marine Machines "Speed" (40MB)
Checkmate Pulsare 2100 BR   Stepped V-Hull   6" pad


National Geographic's Marine Machines "Speed" (113MB)


Pulsare 2100 BR with 225 HP (2.2MB)


Outboard Overkill (15MB)


155 MPH GPS Skater - Team Rudden (13MB)


Scream and Fly Excellent Fast Boat Videos
